VertEx Booth VB Modular Extraction Booth

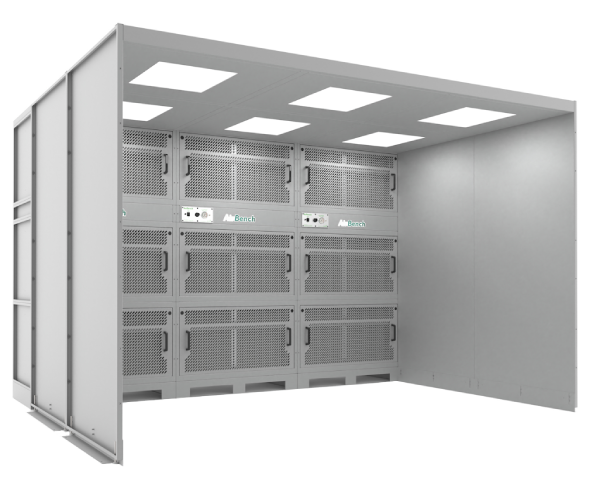

In short: The VertEx Booth VB is a modular booth that encloses one to three VertEx cross-draught units. Containing the work improves capture, and panel lighting and controls are included. It is built from 2 mm fully welded steel for easy assembly on site. Six sizes, 1270 to 3810 mm wide and 1050 or 2100 mm deep, all stand 2465 mm high.
Made by AirBench Ltd in Colchester, UK. Micrographics Data specifies size and filter category, installs, and stocks replacement filters in Singapore.
Enclose the work, improve the capture
A booth contains the work area on three sides, so the VertEx units at its back wall capture more of what is released. Lighting and controls are built into the panels.
The booth does not filter. The VertEx units at its back wall do, so filter choice follows the VertEx model (VA, VP, VX, VAW or VS). AirBench lists VA 12xx24 units as the base for the VB range.
Assemble
Modular panels assemble on site around the VertEx units.
Enclose
The booth contains the work area.
Draw
The VertEx units draw air away from the operator.
Filter
The VertEx unit filters clean the air.
VertEx Booth VB at a glance
From the manufacturer’s published specification. We confirm current options and configuration in our quotation.
VertEx Booth VB available sizes
From the manufacturer’s specification. Dimensions in millimetres.
Datasheet and video
Manufacturer video from AirBench Ltd: How VertEx Works.
VertEx Booth VB against related models
Each links to its own page with sizes, filters and downloads.
If the immediate problem is mould or pests in a collection, treat the objects first with our disinfestation service, then equip the studio.
Government buyers procure through GeBIZ, where Micrographics Data is a registered supplier.
What is the VertEx Booth VB?
The VertEx Booth VB is a modular booth that encloses one to three VertEx cross-draught units. Containing the work improves capture, and panel lighting and controls are included.
What sizes does the VertEx Booth VB come in?
6 models: VB1-12-1 (1270 × 1050 mm), VB2-12-1 (2540 × 1050 mm), VB3-12-1 (3810 × 1050 mm), VB1-12-2 (1270 × 2100 mm), VB2-12-2 (2540 × 2100 mm), VB3-12-2 (3810 × 2100 mm). Full dimensions are in the table above.
Which VertEx units fit the booth?
AirBench lists VertEx VA 12xx24 units as the base unit, one to three per booth depending on width. We confirm the unit and filter choice for your process.
Does the VertEx Booth VB need ductwork?
No. Filtration is done by the VertEx units in the booth, which recirculate cleaned air.
Where can I get the VertEx Booth VB datasheet?
The manufacturer’s datasheet (2018) are linked under Media and downloads on this page.
Who supplies and supports the VertEx Booth VB in Singapore?
Micrographics Data, a GeBIZ-registered Singapore company established in 1989, specifies the configuration, installs it and stocks replacement filters. Government buyers can procure through GeBIZ.
Tell us the task and the space
We specify the model, size and filtration, and quote with installation.
